Direct Factory Strands Twisted White Silk Round Copper Silver Braided Tinsel Wires For Medical Cables
This cables can be use for tens cables, ecg cables, etc.(OEM&ODM are welcomed,high quality)
All kinds of stranded wires of different specifications and parameters can be made according to your demands. :)
Prices of other specifications require consultation
Products Description
|

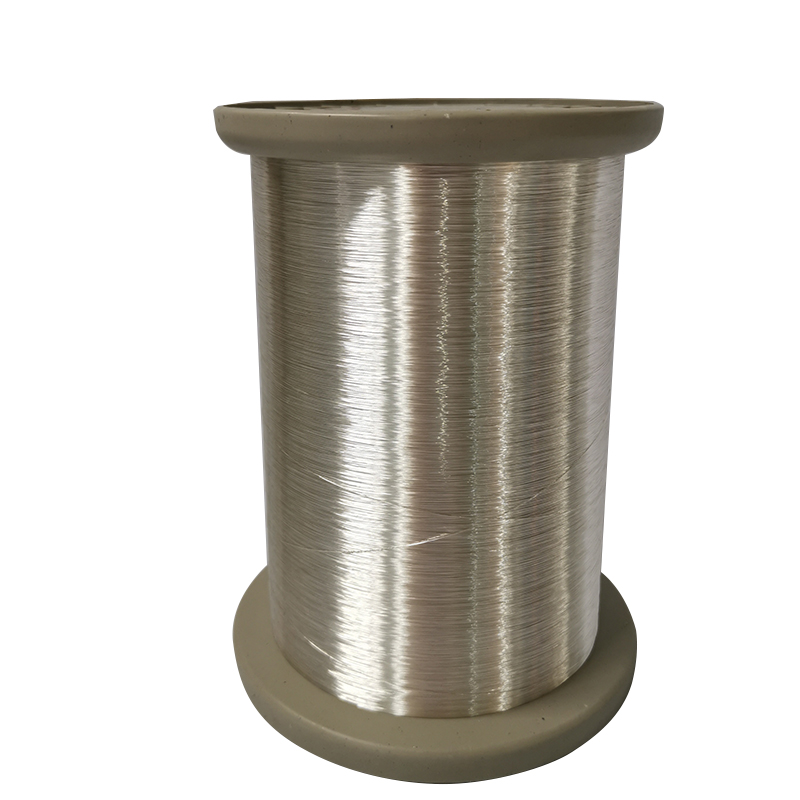

SILVER-PLATED SOFT COPPER WIRE
|
|
Name
|
Silver-plated soft found copper wire
|
|
Model
|
TRY
|
|
Diameter(mm)
|
0.05-3.83
|
|
Materials and product standards
|
|
Copper wire
|
GB/T3953
|
|
Silver
|
GB/4135
|
|
Silver-plated soft found copper wire
|
JB/T3135 or ASTM B298-99
|
|
Resistivity
|
|
Not more than 0.017241
|
Ω.m ㎡/m, at 20⁰C,resistance temperature coefficient 0.00391/⁰C
|
|
Dimensions and Deviations
|
|
Diameter standard (mm)
|
Deviation
|
|
0.110-0.250
|
±0.005
|
|
0.251-0.700
|
±0.010
|
|
0.710-1.000
|
±0.015
|
|
1.100-3.383
|
±0.020
|
|
Mechanical Behavior
|
|
Diameter standard (mm)
|
Artial tensile strength not less than（N/m ㎡)
|
|
0.050-0.100
|
................
|
|
0.110-0.150
|
196
|
|
0.151-0.250
|
196
|
|
0.251-0.700
|
196
|
|
0.710-1.000
|
196
|
|
1.100-3.830
|
196
|
Testing
1. All products must be tested qualified before delivery, we have three processes for testing: IQC-IPQC-FQC, the quality certification report should be delivered together with each batch.
2. Products testing rule should be as follows:
|
ITEM
|
Testing Method
|
|
Silver Percentage & Coating Thickness
|
Coating Thickness Tester
|
|
Diameter & Tolerance/ Stranded Diameter
|
Micrometer
|
|
Appearance/Direction
|
Nominal Visual Test
|
|
Continuity of Plating
|
GB/T4909.9
|
|
Mechanical Property
|
GB/T4909.3
|
|
(DC) Resistivity
|
GB/T3048.2
|
|
Lay
|
Ruler
|
|
WEight(g/m)
|
Electronic Analytical Balance
|
The Application Field of Products
